Ø8mm magnetic absolute encoder

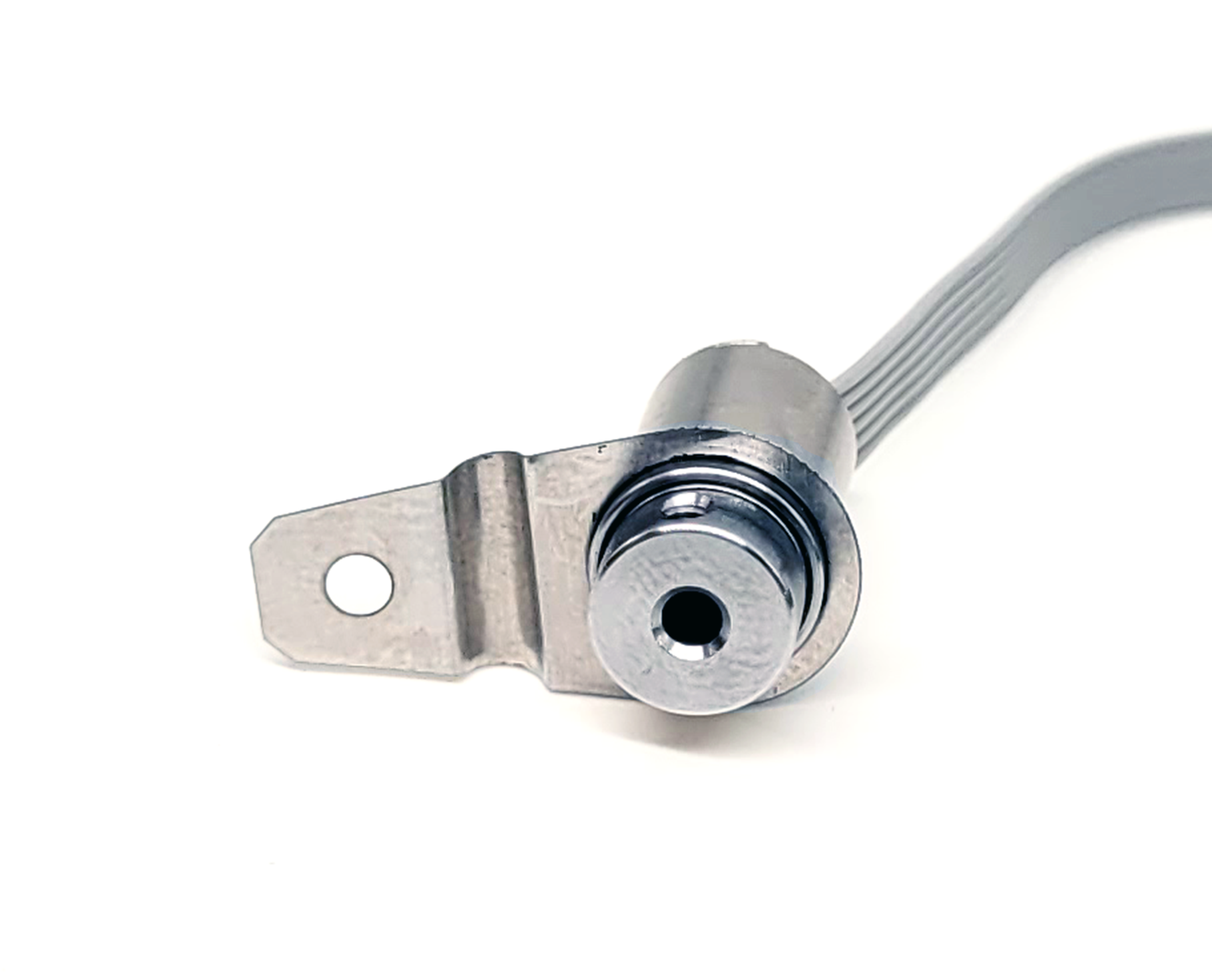

The AM08 is an absolute magnetic rotary encoder.
• Miniature size (Ø 8 mm)
• Various diameter options for solid and blind hollow shafts
• External electronics attached to ribbon cable
• Designed for light industrial applications with limited installation space
| Maximum shaft speed | 6 000 RPM |
| Moment of inertia | < 1.1 x 10-6 kgm2 |
| Starting torque | < 2 x 10-3 Nm |
| Shaft load: | axial: 3 N radial (at shaft end): 3 N |
| Vibrations (55 Hz to 2000 Hz) | ≤ 50 m/s2 |
| Shock (6 ms) | ≤ 100 m/s2 |
| Operating temperature: | -40oC – 85oC |
| Storage temperature | -40oC – 85oC |
| Ingress Protection (EN 60529) | IP50 |
| Electrical interface | SSI / BiSS |
| Resolution | up to 13 bits |
| Accuracy | up to ± 60 arcmin |
| Output code | Binary / Gray (SSI only) |
| Supply voltage | 5 V ± 5 % |
| Current consumption (without load) | max 50 mA |
| AM08X1 – X2 – X3 – X4 – X5 – X6 – X7 | ||||||
| Type (X1) | Output Signal Interface (X2) | Bit Number (X3) | Output Code (X4) | Shaft Diameter (X5) | Cable Length (X6) | Connector or Flange Socket Type (X7) |
| S – solid shaft H – blind hollow shaft |
S – SSI B – BiSS C |
B01 – 1 bit …-… B13 – 13 bits |
B – Binary G – Gray* * only for SSI output signal. |
02M – ⌀ 2 mm H7 25M – ⌀ 2.5 mm H7 03M – ⌀ 3 mm F8 02E – ⌀ 3.175 mm (1/8″) H7 |
RC005 – 500 mm RC01 – 1000 mm RC02 – 2000 mm |
W – without connector IDC1 – IDC1.27-10 10-pins connector |
ORDER EXAMPLES:
1) AM08-S-B13-B-02M-RC02-W
2) AM08-B-B01-G-03M-RC01-W
