NK External Interpolator

External interpolator

NK

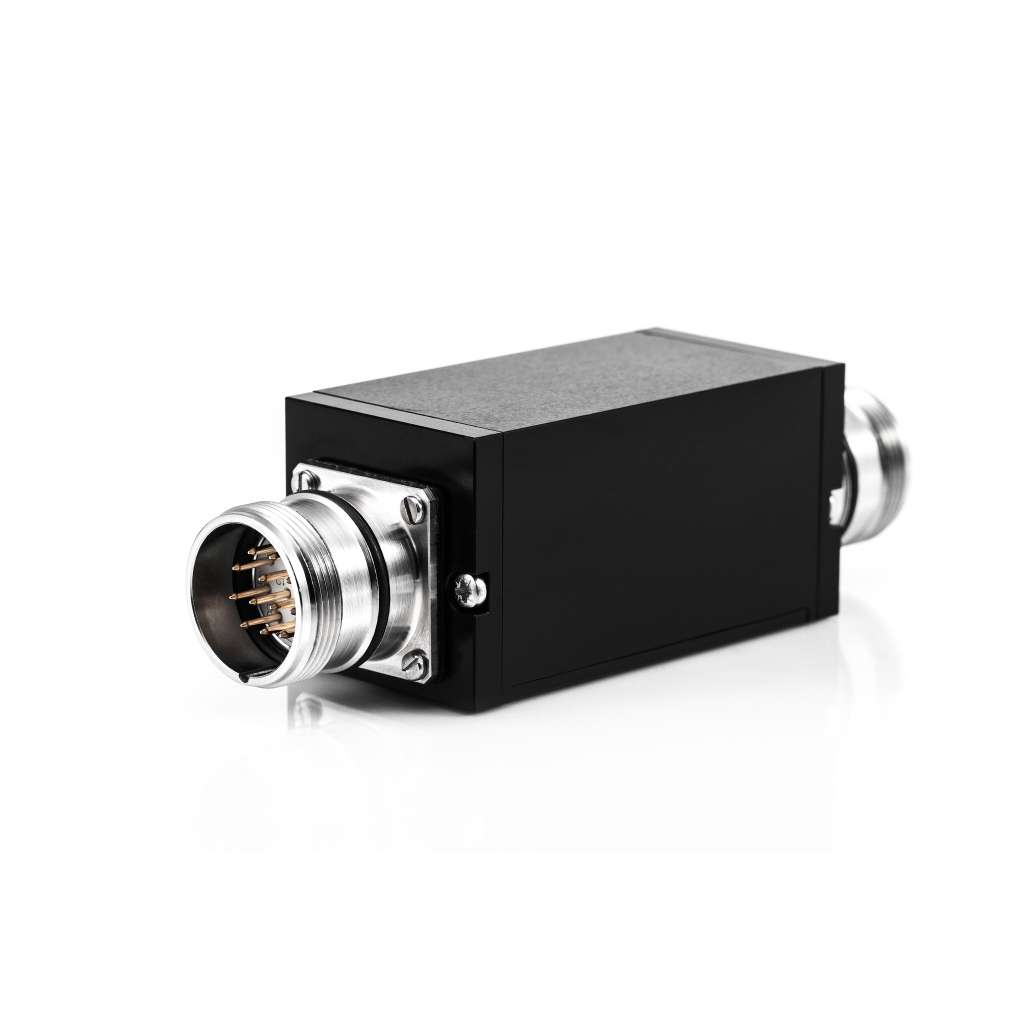

The Interpolation and Digitizing electronics interpolates up to 10-fold and converts the sinusoidal scaning signals from photoelectric encoders to square-wave pulses with TTL levels. Possible interpolation factor: 1, 2, 3, 4, 5, 8, 10. Under the cover, the unit has a commutation switch that allows the Customer to change the interpolation factor.

Electrical data

Input signals (A) Incremental signals: 7-16 μm
Reference signal: 2-8 μm
Input signals (AV) Incremental signals: 0.6 – 1.2 V
Reference signal: 0.2 – 0.8 V
Output signals TTL (RS422) compatible
Operating voltage 5 V
Max. input frequency 50 kHz
Possible input connector/cable C9, D9, D15, ONC, RS10, cable, armored cable
Possible output connector/cable C12, D9, D15, ONC, RS10, cable, armored cable
Signal interpolation NK-1 1-fold
NK-2 2-fold
NK-3 3-fold
NK-4 4-fold
NK-5-5-fold
NK 8-8 fold
NK 10-10 fold

Downloads

Product Catalog
Encoder Selection Guide 2021
SC98-2 Encoder Coupling 2D Drawing

Order code

NK -X1-X2-X3-X4/X5-X6-X7/X8

Input Signals (X1) Interpolation Factor (X2) Input Connector (female) or Cable Type (X3) Input Cable Length (if c or cp selected) (X4) Connector on Input Cable End (X5) Output Connector (male) or Cable Type (X6) Output Cable Length (if c or cp selected) (X7) Connector on Output Cable End (X8)
A – 11uA
AV – 1Vpp		 1
2
3
4
5
8
10		 C9 – round, 9 pins
C12 – round, 12 pins
D9 – flat, 9 pins
D15 – flat, 15 pins
RS10 – round, 10 pins
ONC – round, 10 pins
C – cable 6mm
CP – armoured cable 10mm		 W – without cable
01 – 1m
02 – 2m
03 – 3m
…		 W – without connector
D9 – flat, 9 pins
D15 – flat, 15 pins
RS10 – round, 10 pins
ONC – round, 10 pins		 C9 – round, 9 pins
C12 – round, 12 pins
D9 – flat, 9 pins
D15 – flat, 15 pins
RS10 – round, 10 pins
ONC – round, 10 pins
C – cable 6mm
CP – armoured cable 10mm		 W – without cable
01 – 1m
02 – 2m
03 – 3m
…		 W – without connector
B12 – round, 12 pins
C9 – round, 9 pins
C12 – round, 12 pins
D9 – flat, 9 pins
D15 – flat, 15 pins
RS10 – round, 10 pins
ONC – round, 10 pins

Order form

    Check the "Order code" tab in the product page to see how to know your order code.
