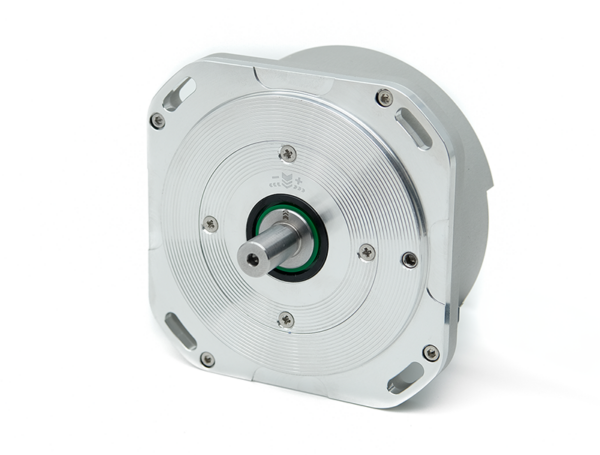

Ø110mm absolute encoder
Absolute angle optical encoder AK110 is a high-end device that enables high accuracy angular measurement up to ±5”. Encoder design with integral bearings, solid 10 mm diameter shaft for separate shaft coupling makes it ideal for demanding applications such as machine tools.
| Shaft | Solid shaft 10 mm |
| Moment of inertia | 50 x 10-6 kgm2 |
| Starting torque | ≤ 0.02 Nm |
| Maximum mechanical speed | ≤ 3000 rpm |
| Permissible shaft load: – axial – radial (at shaft end) |
30 N 30 N |
| Vibrations (55 Hz to 2000 Hz) | ≤ 200 m/s2 |
| Shock (6 ms) | ≤ 200 m/s2 |
| Operating temperature | 0oC – 60oC |
| Storage temperature | -20oC – 60oC |
| Ingress Protection (EN 60529) | IP64 |
| Mass (without cable) | ~ 1 kg |
| Electrical interface | SSI | BISS-C |
| Resolution (positions per turn) | up to 26 bits (67 108 864 positions) | |
| Clock frequency | ≤ 4 MHz | ≤ 10 MHz |
| Calculation time | ≤ 5 us | ≤ 5 us |
| Additional output signals | 1 Vpp: 16 384 pulses/turn | Optional |
| Cutoff frequency of incremental signals (-3 dB) | ≥ 200 kHz | ≥ 200 kHz |

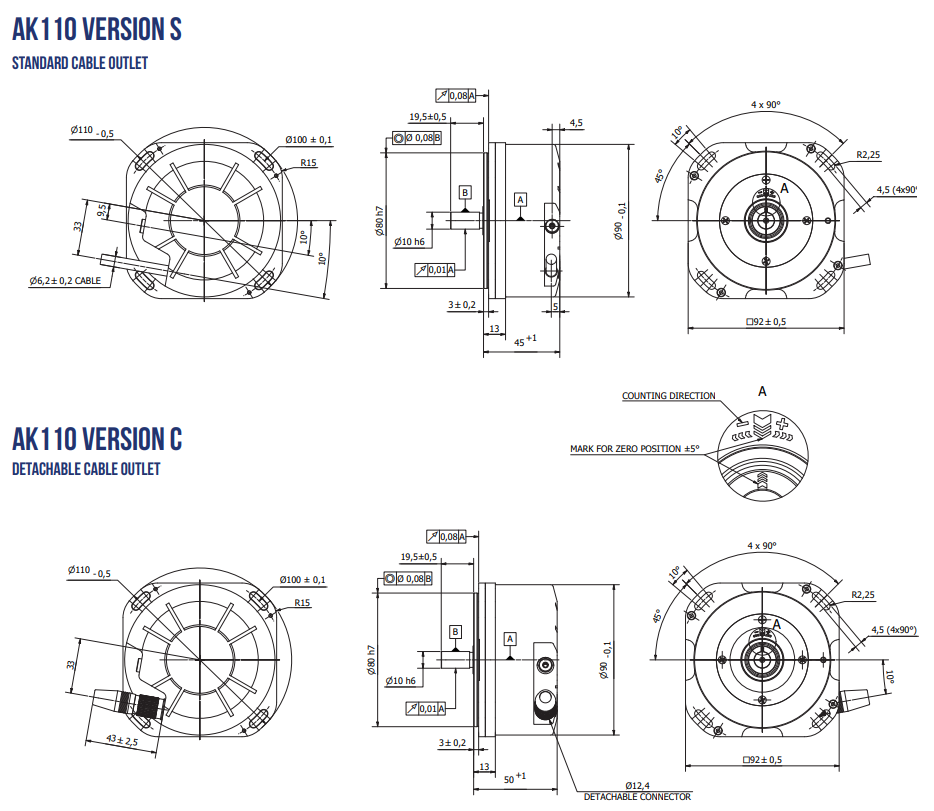

| Electrical connection | Version S: standard cable outlet Version C: detachable cable outlet |
|
| Supply voltage | DC 5 V DC 10…30 V |
|
| Current consumption | Max 200 mA | |
| AK110 – X1 – X2 – X3 – X4 – X5 / X6 | |||||
| Output Signal Version (X1) | Bit Number (X2) | Power Supply (X3) | Cable or Connector Outlet (X4) | Cable Length (X5) | Connector Type (X6) |
| S – SSI (binary) B – BiSS C |
B1 – 1 …-… B26 – 26 |
05V – DC 5V 30V – DC 10…30V |
S – version S (standard cable outlet) C – version C (detachable connector outlet) |
AR01 – 1 m AR02 – 2 m AR03 – 3 m |
W – without connector D9 – flat, 9 pins B12 – round, 12 pins D15 – flat, 15 pins C17T- round, 17 pins |
